NDACS
6008-HD Ethernet Data Acquisition & Logger unit With Secure Digital Memory |
|
![]() NDACS 6008-FM within Bulk Head Mounted Enclosure ![]() |
Systems Description The NDACS 6008-HD instrument contains additional Flash memory compared to the 6008 standard model and allows up to 6.5 million records to be stored in a single device. The NDACS 6008-HD contains all of the same features of the other systems in the NDACS 6000 range. The 6008-HD instrument utilises a low noise 24 bit ADC for all of its analogue acquisition operations and combined with its low noise sensor pre-amplifiers, input noises below 1 uV are achieved. |
Status
Messages A series of status messages can be sent at preset time intervals or when the instrument restarts to indicate that the system is alive and functioning correctly. These messages are useful to show that the instruments are working when deployed remotely or when waiting for a specific in frequent event to occur. |
Web Interface
The NDAC6008-HD contains an embedded Web interface enabling the configuration of all instrument operations to be carried out using a standard Web Browser no matter which communication interface is being used. The User Interface is the same no matter if the connection to a system is made via the Internet or dial-up telephone connection. Any computer using a modern operating system will be able to examine data without the need for any third party applications software. |
Flexibility The NDACS 6008-HD is one of the most flexible low cost instruments upon the market today. Not only can it read and send data across a network or Internet but it can also record data internally and send automatic reports by e-mail to a user. The instrument is fully integrated to the Internet. Not only can the NDACS 6008-HD be directly connected to an Internet server but is can be deployed remotely by direct connection to a modem or mobile phone supporting a data link operations. |
![]() |
Remote
Deployment The NDACS 6008-HD can be deployed remotely to acquire data continually or configured to look for a pre-determined event and to notify the user when it occurs. The NDACS contains all the software to connect directly to radio modems, standard fixed line modems, data link mobile phones and configured to send data to via most dial-up Internet Service provider accounts |
Data Logging Operations.
The. NDACS 6008-HD supports 2 independent data loggers. A Flash memory logger capable of storing 6.5 million sample readings per channel and a general purpose recorder that can store up to 13000 sample readings per channel The instrument can report data automatically after a preset number of records, or data recorded up to a specified date or time and also upon detecting a specified event. Each of the loggers can be set to report to a specified User by E-mail. The data files appear as attachments to an E-mail and can opened directly into spread sheet packages . |
Internet Connectivity The NDACS 6008-HD supports all the network operations required to transmit data across the Internet via a data server. A multiple level password system ensures that data and instrument configurations stay safe when operating on an insecure network. The instrument can be configured to transmit Ethernet packets across private networks using the Ethernet configuration commands |
![]() |
Supported network controls: IP Address Subnet Mask Gateway SMTP IP Address |
Compliance to
European Union Directives This product is approved for installation within the European Union and EEA regions. It has been designed and tested to meet the following directives: EMC Directive The analog modules are tested to meet Council Directive 89/336/EEC Electromagnetic Compatibility (EMC) and the following standards, in whole or in part, documented in a technical construction file EN 50081-2 EMC Generic Emission Standard, Part 2 - Industrial Environment EN 50082-2 EMC Generic Immunity Standard, Part 2 - Industrial Environment This product is intended for use in an in- dustrial environment. |
![]() |
Processor | 40 MHz 32 Bit | Operations

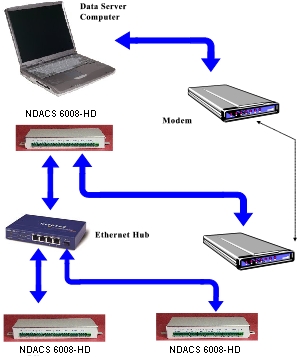

The image below shows a four instrument remote network panel system that can be deployed to record and report data from any sensor connected to the system. The information can be accessed remotely by data server computer, observed in real-time by a Web Browser connected to the instruments by the dial-up modem and/or simultaneously by by a local PC connected to the Ethernet port. The instruments can be Configured to operate directly onto the Internet so as long as a suitable connection can be made information can be processed in real-time by many third party SCADA packages |
|
Communications Ports | Ethernet 10BaseT Port
RS232 Modem |
||
Web Server | Web interface for Configuration & Control | ||
Memory | 4 MB RAM - 64 MB Flash | ||
ADC Resolution | 24 Bit Sigma Delta Conversion | ||
Analogue Inputs | 8 Full differential Inputs | ||
Sensor Excitation | 2.5V @ 20 mA per channel | ||
Ranges per Channel | 50mV, 250mV, 500mV, 1V, 2.5V, 5V | ||
Peak-Peak Noise | 0.69 uV @ 1 Hz 120 uV @ 100 Hz | ||
CJC | 10 KOhm precision RTD | ||
Thermocouple Types | B,C,E,J,K,N,R,S,T | ||
Standard Process Options | Direct Voltage, Thermocouple, RTD, Strain
Linear, Scaled Current (0-20mA,4 -20mA) |
||
Isolation | 1000V Block Isolation | ||
Overload Protection | 25V Full Load | ||
Applications The NDACS instruments are high precision general purpose loggers and Ethernet data acquisition systems and are ideally suited to form large remote data acquisition systems. The instruments can be deployed to record data continually, to look for and report a specific event or to simply send data to remote SCADA systems across the Internet. An E-mail alarm system can be configured to send alarm messages to multiple users should any preset condition be exceeded. No matter how communication to the instrument is made the same User Interface is maintained and all instrument operations can be configured by an industry standard Web Browser. Web Page Data Display ![]() |
|||
Power Supply | 12V Nominal (9-24V DC) at 5W maximum load | ||
Sample Rates | Local Area Network/Internet 1, 2, 5, 10, 20, 50, 100 Hz/Chan | ||
General Logger | 13000 sample readings | ||
Sample Rates | 0.1, 1, 10, 60, 600 (10min), 3600 (1 hr) | ||
Auto Report | Daily/Weekly/Monthly/Number Records | ||
Flash Logger | 6.5 million sample readings | ||
Sample Rates | 0.1, 1, 10, 60, 600 (10min), 3600 (1 hr) | ||
Auto Report | Daily/Weekly/Monthly/Number Records | ||
Physical Dimensions | 230 mm x 160 mm x 30 mm | ||
Mounting Hole Diameter | 6 mm | ||
Connectors | 2.5 mm Diameter Screw lock | ||
Maximum CMR | 10V Channel to Channel |
Physical Dimensions |
Dial-up Remote Networks |
The above dimensions and electrical details are accurate at the time of publishing. Keynes Controls reserves the right to make changes without notification.
